BMW X5: Instructions For Removing And Installing Ear Clips
Special tools required:
- 32 1 260
NOTE: The work steps are show on assorted components. Ear clip must always be replaced.

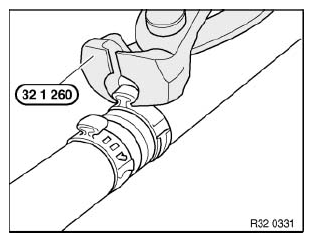

To remove an ear clip, place special tool 32 1 260 at right angles to ear and cut ear open.
.png)
Fig. 70: Identifying Special Tool (32 2 160)
The ear clip can be fitted not only axially but also radially after the hook fastener has been opened.
.png)
Fig. 71: Identifying Ear Clip

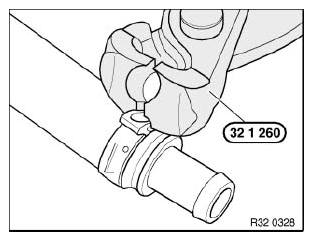

Attach hook fastener and press ear together with special tool 32 1 260.
.png)
Fig. 72: Identifying Special Tool (32 2 160)

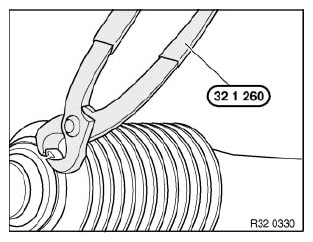

Side cutter of special tool 32 1 260 can be used in areas which are difficult to access
.png)
Fig. 73: Identifying Special Tool (32 2 160)
IMPORTANT: Gap (A) max. 1 mm!
.png)

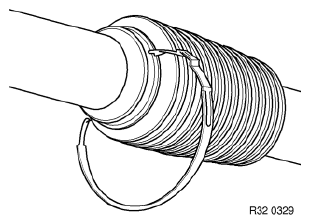

Fig. 74: Identifying Ear Clip Gap
INSTRUCTIONS FOR USING SPECIAL TOOL 32 4 000
Special tools required:
- 32 4 000
- 32 4 004
- 32 4 005
- 32 4 006
- 32 4 011
- 32 4 012
Depending on the pressure hose connection on the pump, the special tool 32 4 000 must be assembled.
- Connection, pump
- Connection, steering gear
.png)

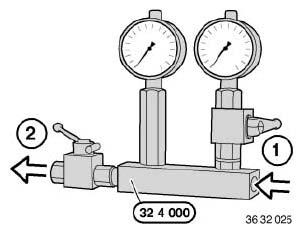

Fig. 75: Identifying Special Tool (32 4 000)
< EMPHASIZE > Pressure hose connection to pump with M14 x 1.5 banjo bolt:
Screw special tool 32 4 004 with M14 x 1.5 banjo bolt (1) and 2 sealing rings to special tool 32 4 000.
Screw special tool 32 4 011 onto pump and connect special tool 32 4 004.
Screw special tools 32 4 006 / 32 4 012 onto special tool 32 4 000 and connect pressure hose with M14 x 1.5 banjo bolts and 2 sealing rings.
.png)

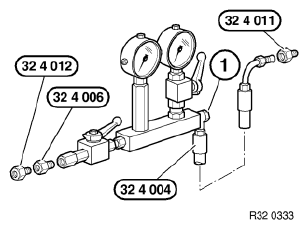

Fig. 76: Identifying Special Tool (32 4 012) (32 4 011)
Pressure hose connection to pump with M16 x 1.5 banjo bolt:
Screw special tool 32 4 004 with M14 x 1.5 banjo bolt (1) and 2 sealing rings to special tool 32 4 000.
Screw special tool 32 4 005 onto pump and connect special tool 32 4 004.
.png)

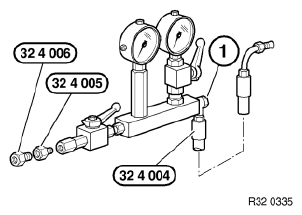

Fig. 77: Identifying Special Tool (32 4 006) (32 4 005)
Screw special tool 32 4 006 onto special tool 32 4 000 and connect pressure hose with M16 x 1.5 banjo bolt and 2 sealing rings.
Pressure hose connection to pump with M16 x 1.5 union screw:
Screw special tool 32 4 004 with M14 x 1.5 banjo bolt (1) and 2 sealing rings to special tool 32 4 000.
Connect special tool 32 4 004 to pump.
Screw special tools 32 4 006 / 32 4 005 onto special tool 32 4 000 and connect pressure hose.
.png)
Fig. 78: Identifying Special Tool (32 4 004)
