BMW X5: Engine Suspension
REPLACING RIGHT ENGINE MOUNT (N62TU)
Necessary preliminary tasks:
- Disconnect Battery.
- Secure engine in installation posit.
- Remove reinforcement plate.
- Drain off engine oil
- Remove heat shields.
- Remove Starter Motor.
- Remove Engine Support Arm.
Release screws (1) and remove engine mount (2). Tightening torque 22 11 1AZ.
.png)

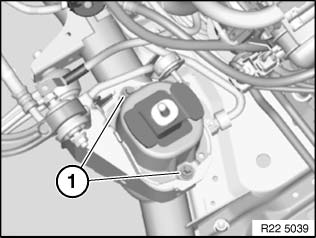

Fig. 1: Locating Engine Mount Nuts
Installation:
Holes (1) in engine mount must point to middle of vehicle.
.png)

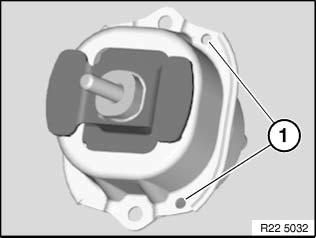

Fig. 2: Holes Must Point To Middle Of Vehicle
REPLACING LEFT ENGINE MOUNT (N62TU)
Necessary preliminary tasks:
- Disconnect battery.
- Secure engine in installation position.
- Remove reinforcement plate.
- Remove engine support arm.
Release screws (1) and remove engine mount (2). Tightening torque 22 11 1AZ.
.png)

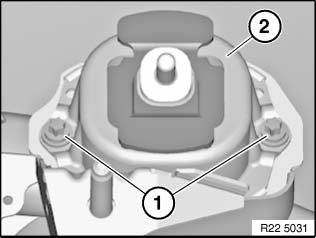

Fig. 3: Releasing Screws And Removing Engine Mount
Installation:
Holes (1) in engine mount must point to middle of vehicle. See Fig. 2.
REPLACING RIGHT ENGINE SUPPORT ARM (N62TU)
Necessary preliminary tasks:
- Disconnect battery.
- Secure engine in installation position.
- Remove reinforcement plate.
- Drain off engine oil.
- Remove heat shields.
- Remove oil dipstick guide tube.
- Remove starter motor.
- Remove right steering cover.
Release screws and engine support arm.
Tightening torque 22 11 3AZ.
.png)

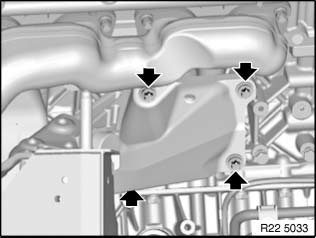

Fig. 4: Removing Engine Support Arm
REPLACING LEFT ENGINE SUPPORT ARM (N62TU)
- Disconnect battery.
- Secure engine in installation position.
- Remove reinforcement plate.
- Drain off engine oil.
- Remove heat shields.
- Remove front differential.
Release screws (1) and (2) and remove engine support arm. Tightening torque 22 11 3AZ.
.png)

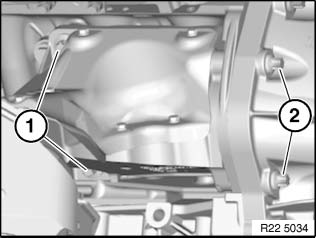

Fig. 5: Removing Engine Support Arm
