BMW X5: Transmission Suspension
REPLACING RUBBER MOUNT FOR TRANSMISSION MOUNT
Special Tools Required:
- 22 1 016
- 22 1 017
- 22 1 101
- 22 1 102
- 22 1 103
- 33 4 465
NOTE: See ENGINE AND GEARBOX SUSPENSION - SPECIAL TOOLS and REAR AXLE - SPECIAL TOOLS.
Necessary preliminary tasks:
- Remove crossmember for transmission mount.
Place special tool 22 1 016 on opening (1) and insert screw (2) until hand-tight against housing. Pull out rubber mount with special tools 22 1 101 / 33 4 465 and nut (22 1 017).
NOTE: See ENGINE AND GEARBOX SUSPENSION - SPECIAL TOOLS.
Installation:
Arrow on rubber mount must point to arrow on housing. Coat housing bore and rubber mount with Circolight.
Insert special tool 22 1 102 with pins into openings of rubber mount.
Install rubber mount with special tools 22 1 102 / 22 1 103 / 33 4 465 and 22 1 017.
NOTE: See ENGINE AND GEARBOX SUSPENSION - SPECIAL TOOLS.
.png)

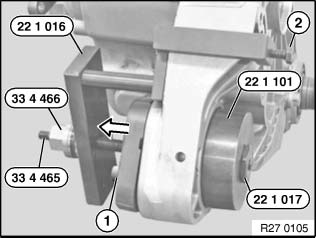

Fig. 6: Pulling Out Rubber Mount With Special Tools
.png)

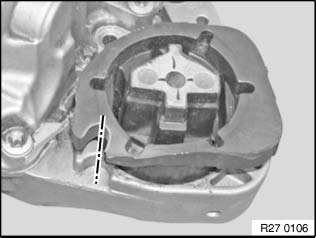

Fig. 7: Arrow On Rubber Mount Must Point To Arrow On Housing
.png)

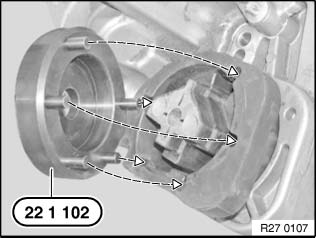

Fig. 8: Insert Special Tool 22 1 102 With Pins Into Openings Of Rubber Mount
.png)

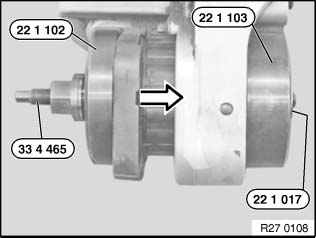

Fig. 9: Installing Rubber Mount With Special Tools 22 1 102, 22 1 103, 33 4
465, 22 1 017
REPLACING CROSS-MEMBER FOR TRANSMISSION MOUNTING
Special Tools Required:
- 00 2 030
- 23 0 132
- 23 4 050 See Fig. 10.
Necessary preliminary tasks:
- Remove underbody protection.
- Remove heat shields.
- Remove exhaust system.

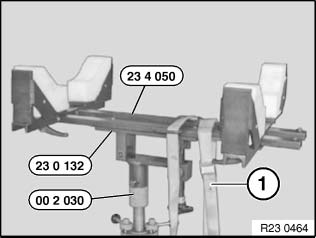

Supporting Transmission : Support with special tools 23 4 050, 23 0 132 and 00 2 030. Secure transmission with tensioning strap (1).
.png)
Fig. 10: Supporting Transmission

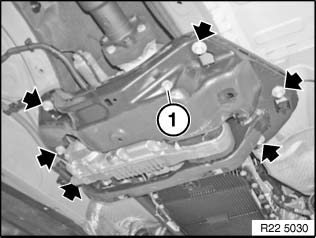

.png)
Fig. 11: Removing Crossmember
Release screws. Tightening torque 22 32 4AZ.
Release screw (1). Tightening torque 22 32 5AZ.
Remove cross-member.
