BMW X5: Engine Diagnosis
Engine Diagnosis
When attempting to diagnose driveability complaints, always consider the basics. Regardless of the level of technology employed on an engine, it still needs a few basic things to occur in order to run properly. Whether the engine is very basic or uses so-called "New Generation" technology always refer to the basic principles first.
Any engine using four-cycle spark-ignition principles must meet the same fundamental conditions to run properly. Most engine related driveability problems fall into a few basic categories:
- No Start/No Crank
- Extending cranking before engine start
- Rough Running Cold Idle
- Rough Running Warm Idle
- Rough Running Under Load
- Lack of Power
- Check Engine Light (MIL)
.png)

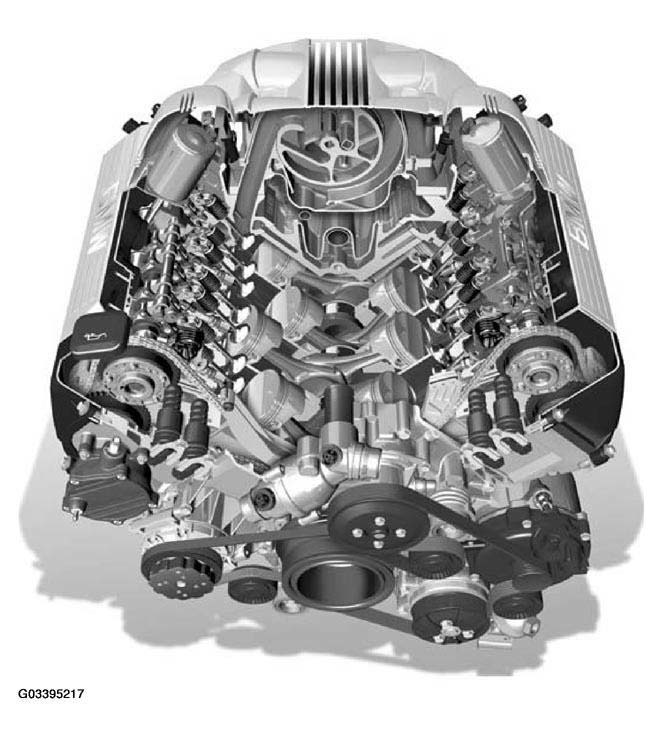

Fig. 1: Sectional View Of Engine
When referring to engine basics, all engines need fuel, air and spark to run. However, in order for a spark-ignition engine to run properly, a few things must be taken into consideration. The fuel, air, spark principle can be broken down further into the following categories:
- Sufficient engine compression with a leak-free combustion chamber.
- Sufficient amount of ignition voltage (spark) at the correct time.
- Proper fuel pressure and volume.
- Properly functioning fuel injection system (Engine management).
- Properly functioning air management system (Electronic throttle systems).
- Correct valve timing (VVT and VANOS).
.png)

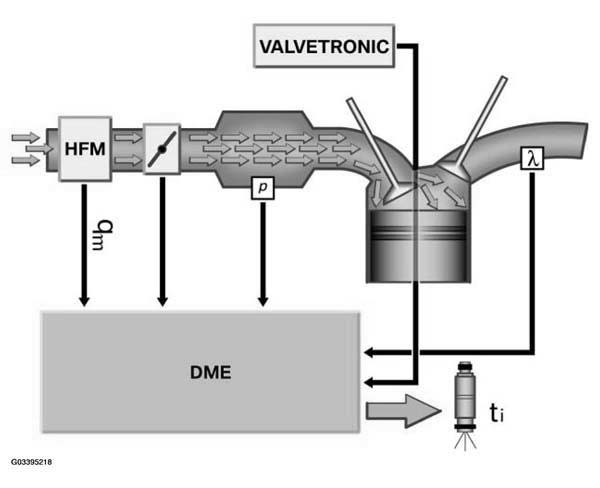

Fig. 2: Operation Of Valvetronic
- Compression Testing
- Workshop Hints On Cylinder Leakage Testing
- Ignition System Diagnosis
- Fuel System Testing
- Fuel Volume Testing
- Fuel System - E32 With M60
- Engine Adaptation Values
- Smooth Running Measurement
