BMW X5: Assembly Wedges (Set In Plastic Case)

BMW X5 (G05) 2019-2026 Service & Repair Manual / Maintenance & General Information / Assembly Wedges (Set In Plastic Case)

Minimum set: Mechanical tools

Note: For straightening and assembly jobs on vehicle bodies, e.g. fitting trim panels, removing window weatherstrips, repairing small-scale dents, removing residual adhesive materials, measuring gap widths, levering out trim panel parts

Series: E12, E21, E23, E24, E28, E30, E30/C, E30tou, E31, E32, E32/3, E34, E34tou, E36, E36/2, E36/3, E36/5, E36/7, E36/C, E36tou, E38, E38/3, E39, E39PL, E39tou, E46, E46/16, E46/2, E46/3, E46/5, E46/C, E52, E53, E60, E61, E63, E64, E65, E66, E67, E68, E70, E81, E82, E83, E85, E86, E87, E90, E91, E92, E93, R50, R52, R53, R55, R56, RR1, RR2

SI number: 1 25 05 230

Order number: 00 9 310

Assembly wedges (set in plastic case)

Consisting of:

  1. 00 9 311 Trim remover
  2. 00 9 312 Striking wedge, square
  3. 00 9 313 Striking wedge, large
  4. 00 9 314 Adjusting wedges (2 x)
  5. 00 9 315 Gap wedge
  6. 00 9 316 Sealing lip wedge
  7. 00 9 317 Trim panel wedge
  8. 00 9 318 Universal wedge
  9. 00 9 319 Striking wedge, small
  10. 00 9 321 Fishbone
  11. 00 9 322 Plastic wedge
  12. 00 9 323 Cleaning wedge (scraper)
  13. 00 9 324 Trim remover (metal plate)

Note: For removing stem trims from E60

14 = 00 9 329 Case with inlay for assembly wedges

In conjunction with: 009310

Maintenance & General Information

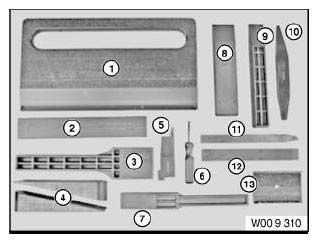

Fig. 58: Identifying Assembly Wedges (00 9 310)

DISASSEMBLY AID (2)

Minimum set: Mechanical tools

Note: For levering out switch block on driver's door.

Series: E12, E21, E23, E24, E28, E30, E30/C, E30tou, E31, E32, E32/3, E34, E34tou, E36, E36/2, E36/3, E36/5, E36/7, E36/C, E36tou, E38, E38/3, E39, E39PL, E39tou, E46, E46/16, E46/2, E46/3, E46/5, E46/C, E52, E53, E60, E61, E63, E64, E65, E66, E67, E68, E70, E81, E82, E83, E85, E86, E87, E90, E91, E92, E93, R50, R52, R53, R55, R56, RR1, RR2

SI number: 1 15 99 (483)

Order number: 00 9 340

Disassembly aid (2)

Maintenance & General Information
Fig. 59: Identifying Disassembly Aid (00 9 340)

TORQUE WRENCH

Note: Infinitely adjustable from 0.05 Nm to 0.6 Nm (5 cNm to 60 cNm). 1/4" external square bit connection.

For information on adjustment, see SWZ Service Information 1 03 07 337 Annex 3.

Series: E52, E53, E60, E61, E63, E64, E65, E66, E67, E68, E70, E81, E83, E85, E86, E87, E90, E91, E92, E93, R50, R52, R53, R56, RR1, RR2

SI number: 1 03 07 337

Order number: 00 9 450

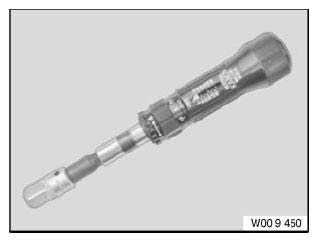

Torque wrench

Maintenance & General Information
Fig. 60: Identifying Torque Wrench (00 9 450)
