BMW X5: Replacing Rear Left Side Panel (Partial Replacement Before
Longitudinal Member Cover)
Read contents of Body, General.
Spot-weld bonding is used on this vehicle. Observe specific procedure.
Use only approved spot-welding apparatus for repairs!
Remove or cover those vehicle components in the repair area which are
susceptible to heat or dust.
Following new body parts are required:
- Partial section, rear side panel
.png)
Fig. 197: Identifying Partial Section, Rear Side Panel
Open weld joints in areas (1).
.png)
Fig. 198: Identifying Open Weld Joints Area
.png)
Fig. 199: Identifying Open Weld Joints Area

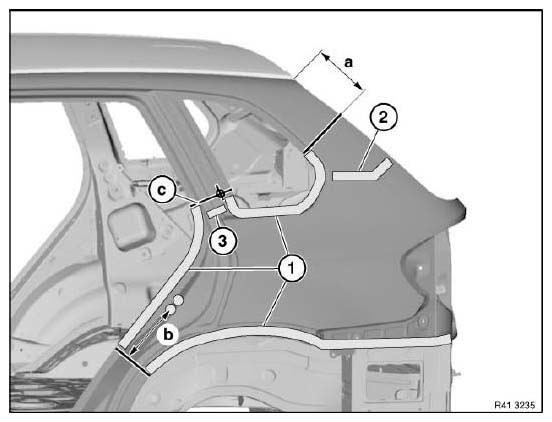

Mark severance cuts in accordance with specified measurements and cut.
IMPORTANT: Cut outer metal sheet only.
Measurement a = 260 mm from roof edge
Measurement b = approx. 200 mm from middle of lower lock striker screw point.
Severance cut (c) in centerpoint of 15 mm dia. hole
Open weld joints in areas (1).
Installation information:
Open weld joints in areas (1).
Open brazed joint in areas (2).
.png)
Fig. 200: Identifying Open Brazed Joint Area
