BMW X5: Removing And Installing/Replacing Drive Cable Plate
Necessary preliminary tasks:
- Remove mechanism for glass cover at front.
Overview of glass lid mechanism:
.png)

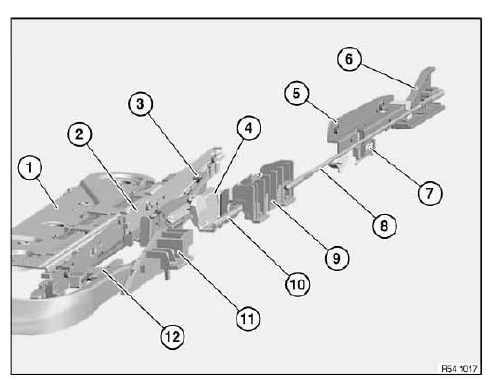

Fig. 1: Identifying Glass Lid Mechanism Components
- Floating roofliner mechanism
- Mechanism, front glass lid
- Drive wedge
- Drive plate
- Mechanism, rear glass lid
- Control carriage, rear glass lid
- Spring retainer
- Drive cable, rear glass lid (connecting link)
- Drive cable plate
- Drive cable, front glass lid (connecting link)
- Control carriage, wind deflector
- Slide element
.png)

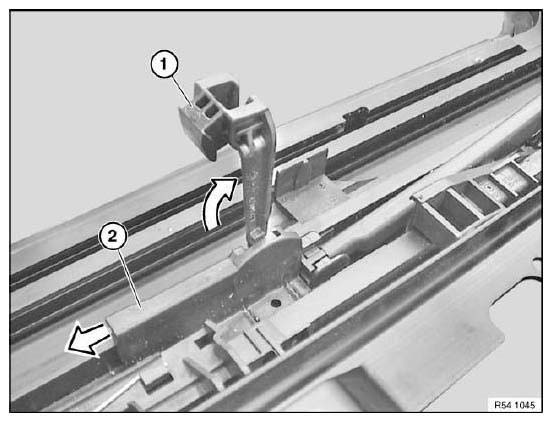

Fig. 2: Removing Drive Wedge
If necessary, remove drive wedge (1).
If necessary, slide drive cable plate (2) towards rear and remove from guide
rail.
.png)

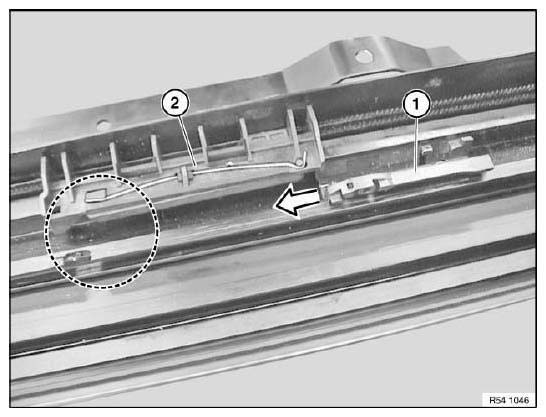

Fig. 3: Sliding Drive Cable Plate
IMPORTANT: Risk of damage when installing drive cable pla
The rear drive cable plate (2) must be engaged before the front drive cable
plate (1) is installed.
Incorrect setting can be identified from spring position and lever position
(marked area).
Check engagement of rear drive cable plate (2) in guide rail.
Slide in drive cable plate (1).
