BMW X5: Instructions On Starting Aid

Do not start the engine with help of starting sprays.

Preparation:

Conform with the following when starting engine with starting cable.

• Ensure that jump lead wires are to appropriate cross-section size.
• Only use fuse-protected jump leads.
• Check whether the current supplying battery has 12 V voltage.
• If engine is started from battery of another vehicle, ensure that there is no contact between the bodies of both vehicles.

CAUTION: Never touch ignition system components and current - dangerous high tension!

If the battery in the vehicle supplying power is weak, start the engine of this vehicle and let it run at idling speed.

Carrying out:

Always conform with the procedures to avoid injury to persons or damage to parts.

• On automatic transmission, select "P" setting, apply handbrake.
• Move the shift lever of vehicles with manual transmission into neutral and apply the parking brake.
• Ensure that the jump leads cannot get caught in rotating parts, e.g. fan.
• First connect positive terminals of both batteries with one jump lead (red).
• Use positive connection point in engine compartment for vehicles with one battery in trunk.
• Then attach second jump lead (black) to negative terminal of donor battery and to engine ground or body ground on vehicle to be started.

CAUTION: Never connect second jump lead (black) to negative terminal of battery in vehicle to be started. This would produce explosive gas which could be ignited by sparks.

Danger of explosion!

After engine of vehicle to be started has started up, first disconnect the jump lead on the negative terminal/ground connection. Then remove jump lead from positive terminals.

BATTERY

Battery care and maintenance

In low-maintenance batteries, check the acid level at least once a year. If necessary, top up with distilled water up to the top marking.

The increasing number of electronic control units in the car reduces the self-discharging time of the battery (even in standby mode). To maintain the battery service life and to avoid exhaustive discharging, recharge laidup vehicles every 6 weeks at the latest. The time for self-discharging depends on vehicle type and equipment specification.

Battery test

The battery acid density can be used to measure the charge state. However this test produces uncertainty caused by a design-related range of variation. The acid density e.g. for a charged battery is 1.28 kg/l (in the tropical version the acid density is 1.23 kg/l).

Another interference factor is the acid lamination immediately after filling with distilled water.

Battery wear with partially sulphated and/or heavily contaminated plates will also lead to incorrect acid density test results.

DIAGNOSIS FOR CONDITION BASED SERVICE

NOTE: Red symbol for pre-delivery check

The vehicle is coded at the end of the assembly line so that the red symbol for the pre-delivery check is shown in the Next Service display (same symbol as vehicle check).

The symbol is a reminder to the Service staff that the pre - delivery check has not yet been carried out on this car.

NOTE: Do not carry out a reset.

Do not confuse this function with the "Vehicle check" maintenance scope.

Do not carry out a reset via the instrument cluster.

When carrying out the pre-delivery check with the "Transport Mode/Pre-delivery check" service function: The symbol is automatically removed from the display after the service function has been executed.

Fig. 1: Display Vehicle Service Symbol

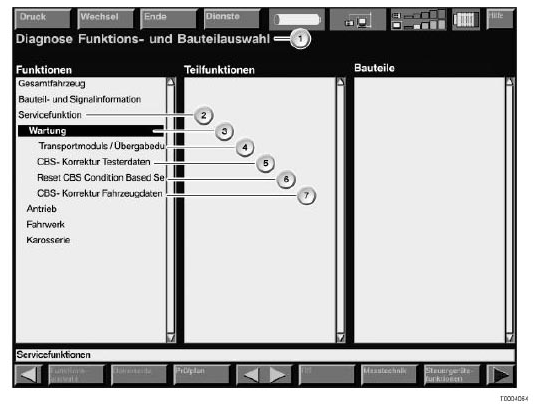

Fig. 2: Display BMW Diagnosis Function Screen

1. Function and component selection
2. Service functions
3. Maintenance
4. Transport Mode/Pre-delivery check
5. CBS Correction Tester Data
6. Reset CBS Condition Based Servise
7. CBS Correction Vehicle Data

4 service functions are available in the BMW diagnosis system for maintenance:

• Transport Mode/Pre-delivery check
• CBS Correction Tester Data
• Reset CBS
• CBS Correction Vehicle Data

Service function: Transport Mode/Pre-delivery check

To be able to hand over a vehicle to the customer in proper working order, it is essential to execute the "Transport Mode/Pre-delivery check" service function.

The following items are worked through during the pre-delivery check:

• Deactivation of transport mode.
• An adaptation process must be activated in order to determine the vehicle-specific mileage/kilometrage per week. Transport and immobilization periods before the vehicle is delivered to the customer therefore have no effect on the customer-specific weekly mileage/kilometrage.

  The weekly mileage/kilometrage is used to control escalation from "green" to "yellow" (approx. 4 weeks before "red") for maintenance scopes with remaining distances. The averaged mileage/kilometrage of the last 6 weeks is taken into account here.

• Coding or blanking out of the legally prescribed intervals for the statutory vehicle inspection and statutory exhaust emissions test.
• Input of the target dates for the statutory vehicle inspection and the statutory exhaust emissions test (automatic or manual).

  Automatic: By input of the date of first registration and of the time interval Manual: By direct input of the target date

• Entry of local, service-related phone numbers, depending on vehicle equipment specification (e.g. BMW Group Mobile Service, BMW Hotline, customer's home dealer).

  The country-specific phone numbers are displayed in the BMW diagnosis system as a reference text. The phone numbers can simply be read off during the input prompt.

• Reference to initialization of TeleService, depending on vehicle equipment specification.
• Checking and if necessary setting of the on-board date for the vehicle.
• Entry of the date for first registration of the vehicle.
• Now clear the fault memory.

NOTE: Reducing input expenditure.

Standardized data are stored in the BMW diagnosis system (for repeated use) in the interests of minimizing the time spent on making inputs in the garage/workshop. The standardized data can be changed with the "CBS Correction Tester Data" service function.

Service function: CBS Correction Tester Data

Data are automatically stored in the vehicle with the "Pre-delivery check" service function.

The standardized data can be changed with the "CBS Correction Tester Data" service function.

The following standardized data can be changed:

• Phone numbers:
  • BMW Group Mobile Service
  • BMW Hotline
  • Customer's home dealer

The country-specific phone numbers are contained as reference texts in the BMW diagnosis system (read off during the input prompt). The phone numbers must be input with the international dialling code.

• Legally prescribed vehicle inspection (country-specific):
  • Coding or blanking out
  • Interval for calculating the target date

The target date is calculated on the basis of the date of first registration.

• Legally prescribed exhaust emissions test (country-specific):
  • Coding or blanking out
  • Interval for calculating the target date

The target date is calculated on the basis of the date of first registration.

NOTE: Automatic function after installation of the BMW diagnosis system.

The standardized data are automatically established when the pre-delivery check is carried out for the first time. It is therefore not necessary to input the data separately.

Service function: Reset CBS Condition Based Service

A maintenance scope can be reset with the "Reset CBS Condition Based Service" service function. Even when availability is over 80 %.

The benefit of reset via the BMW diagnosis system is that the on-board date is corrected automatically.

The individual maintenance scopes are displayed in the BMW diagnosis system with service counter and availability.

• The service counter is reset by one counter on resetting. All service counters are set to "1" on new vehicles.

  The service counters are used in the Service Acceptance/Reception Module (SAM) on a scope-specific basis for controlling additional work.

• Availability is set to 100 % on resetting. Availability in % is the wear value of the maintenance scope.

  The greater the availability, the longer it is to the next maintenance scope.

  0 % means that the maintenance measure must be carried out.

Service function: CBS Correction Vehicle Data

IMPORTANT: The data are overwritten.

Once this service function has been executed, it is no longer possible to reconstruct the previous status.

The "CBS Correction Vehicle Data" service function is available if a reset has been carried out erroneously. In this way, the availability of a maintenance scope can be corrected to a realistic value.

A data or a mileage/kilometer reading is entered for correction. These data are converted internally into an availability in %. In so doing, the BMW diagnosis system only accepts a smaller value as the current reading in the control unit. In addition, the service counter of the scope is automatically reduced by one counter.

The inputs are used in the Service Booklet to determine the realistic availability. A realistic availability can be reconstructed on a scope-specific basis by means of the last maintenance measure (with mileage/km reading and date).

This does not include correcting the availability for brake pads. The brake pad residual thickness must be measured and input (in millimeters).

NOTE: Reference for distance-and time-dependent maintenance scopes For a correction, the availability is referred to the distance - and time-dependent calculation.

NOTES ON HANDLING OPTICAL FIBERS

CAUTION: To avoid damage when handling optical fibers, comply with the following points:

• The minimum permitted bending radius is 25 mm
• Do not subject optical fibers to compressive and tensile load
• Protect optical fibers against the effects of heat > or =85ºC (e.g.during welding work, drying work with infrared heater or hot air blower)
• Optical fibers are permitted to show only one junction point (bridge), replace optical fibers if necessary

NOTE: The optical fibers are colored differently as follows:

• Green=MOST (M edia O riented S ystems T ransport) optical fibers
• Yellow=ISIS (I ntelligent S afety and I ntegration S ystem) optical fibers
• Orange=repair optical fibers

Follow instructions for processing cables and optical fibers.
