BMW X5: Film Sheet

FILM SHEET, GERMAN

Order number: 00 0 051

Film sheet, German

Maintenance & General Information
Fig. 5: Identifying Caption Board: "SPECIAL TOOLS" (00 0 050)

FILM SHEET, ENGLISH

Order number: 00 0 052

Film sheet, English

Maintenance & General Information
Fig. 6: Identifying Caption Board: "SPECIAL TOOLS" (00 0 050)

FILM SHEET, FRENCH

Order number: 00 0 053

Film sheet, French

Maintenance & General Information
Fig. 7: Identifying Caption Board: "SPECIAL TOOLS" (00 0 050)

FILM SHEET, DUTCH

Order number: 00 0 054

Film sheet, Dutch

Maintenance & General Information
Fig. 8: Identifying Caption Board: "SPECIAL TOOLS" (00 0 050)

FILM SHEET, ITALIAN

Order number: 00 0 055

Film sheet, Italian

Maintenance & General Information
Fig. 9: Identifying Caption Board: "SPECIAL TOOLS" (00 0 050)

FILM SHEET, SPANISH

Order number: 00 0 056

Film sheet, Spanish

Maintenance & General Information
Fig. 10: Identifying Caption Board: "SPECIAL TOOLS" (00 0 050)

CAPTION BOARD WITHOUT FILM

Order number: 00 0 059

Caption board without film

SPECIAL TOOL BOARD V COMPLETE

In conjunction with: 00 0 230 This board can be used in a min. 4 m long moving special tool cabinet.

Note: Size 2 m x 1 m

Series: All models

Storage location: Tool cabinet

Order number: 00 0 060

Special tool board V complete

Consisting of:

3 = 00 0 063 Hook set for films 13, 14 and 15

4 = 00 0 064 Film 13 (left)

Note: For fields A/B/C 33... 35

5 = 00 0 065 Film 14 (center)

Note: For fields A/B/C 35/36 and 37/38

6 = 00 0 066 Film 15 (right)

Note: For fields A/B/C 38... 40

7 = 00 0 224 Large special tool board 2 m x 1 m

Note: This special tool board serves as the back panel of basic and mounting frames and is the basis for large fixed and moving special tool boards.

In conjunction with: Hook set and films

Maintenance & General Information

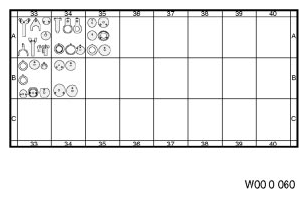

Fig. 11: Identifying Special Tool Board V (00 0 060)

SPECIAL TOOL CABINET, LENGTH 6 M

Note: For accommodating large or small moving special tool boards (not contained in scope of delivery) for the entire current range of special tools. Consisting of: 1x 00 0 220 complete plus 2x 00 0 221 and 2x 00 0 224

Series: All models

Order number: 00 0 070

Special tool cabinet, length 6 m

FOLDING INDEX

Note: Summary of tool positioning/storage locations

Storage location: Tool cabinet

SI number: 1 12 97 (202)

Order number: 00 0 080

Folding index

Maintenance & General Information
Fig. 12: Identifying Folding Index (00 0 080)
