BMW X5: Cardboard Box
Minimum set: Measuring and testing equipment
Note: As storage location "Y3" for MINI V-adapter leads (with launch of R56)
SI number: 2 09 06 313
Order number: 00 0 110
Cardboard box
.png)
Fig. 13: Identifying Cardboard Box (00 0 110)
CARDBOARD BOX (SET) FOR CABLE CABINET
Note: For storing adapter cables (cable cabinet reconditioning) 2 cardboard boxes are supplied at present: 00 0 121 = storage location Y1 00 0 122 = storage location Y2
SI number: 00 04 04 (104)
Order number: 00 0 120

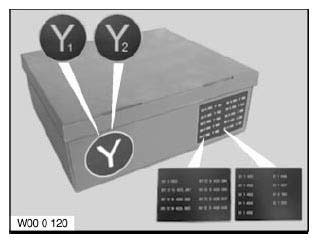

Cardboard box (set) for cable cabinet
Consisting of:
1 = 00 0 121 Cardboard box Y1
Note: = storage location for adapter cables
2 = 00 0 122 Cardboard box Y2
Note: = storage location for adapter cables
.png)
Fig. 14: Identifying Cardboard Box (00 0 110)
SPECIAL TOOL BOARD VI COMPLETE
In conjunction with: 00 0 230 This board can be used in a min. 4 m long moving special tool cabinet.
Note: Storage board for older tools
Series: All models
Order number: 00 0 130

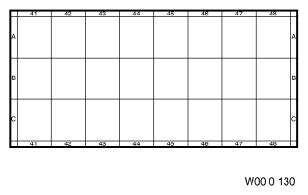

Special tool board VI complete
.png)
Fig. 15: Identifying Special Tool Board VI (00 0 130)
SUPPLEMENTARY HOOK SET
Note: Only for delivery of the supplementary hook set for converting tool boards (old to new)
Order number: 00 0 140
Supplementary hook set
SPECIAL TOOL CABINET
Note: To accommodate 5 special tool boards. Replaced by 1x 00 0 220 complete plus 1x 00 0 221 and 1x 00 0 224
Order number: 00 0 150
Special tool cabinet
.png)
Fig. 16: Identifying Special Tool Cabinet (00 0 150) (1 Of 6)
SHELF
Order number: 00 0 152
Shelf
.png)
Fig. 17: Identifying Special Tool Cabinet (00 0 150) (2 Of 6)
WIDE-GROOVE MAT (2 MATS)
Order number: 00 0 153
Wide-groove mat (2 mats)
.png)
Fig. 18: Identifying Special Tool Cabinet (00 0 150) (3 Of 6)
DRAWER UNIT WITH 5 DRAWERS, LOCKABLE
Order number: 00 0 154
Drawer unit with 5 drawers, lockable
.png)
Fig. 19: Identifying Special Tool Cabinet (00 0 150) (4 Of 6)
REAR PANEL
Order number: 00 0 155
Rear panel
.png)
Fig. 20: Identifying Special Tool Cabinet (00 0 150) (5 Of 6)
LOCKABLE ROLLER SHUTTER (2)
Order number: 00 0 158
Lockable roller shutter (2)
.png)
Fig. 21: Identifying Special Tool Cabinet (00 0 150) (6 Of 6)
PARTS CABINET
Note: For storing removed vehicle parts
Series: All models
Storage location: Single
SI number: 8 01 94(821)
Order number: 00 0 170
Parts cabinet
.png)
Fig. 22: Identifying Parts Cabinet (00 0 170)
READ NEXT:
Cable Cabinet, Complete
CABLE CABINET II, COMPLETE
Note: For extended accommodation of adapter leads as well as measuring and
test equipment
SI number: 0 02 99 (399)
Order number: 00 0 180
Cable cabinet II, complete
Consist
Cross Member
Minimum set: Mechanical tools
Note: To hold the engine when removing and installing the front axle support,
the oil sump and the transmission
Engine: M10, M20, M20B25, M20B27, M21, M30, M30B34, M30Tu
Shelf
Note: With mounting material.
SI number: 0 01 00 (549)
Order number: 00 0 250
Shelf
Fig. 29: Identifying Shelf (00 0 250)
DRAWER BLOCK
Note: With 5 lockable drawers
SI number: 0 01 00 (549)
Order num
