BMW X5: Checking Absolute Compression Of All Cylinders
Diagnosis and Information System (DIS)
.png)

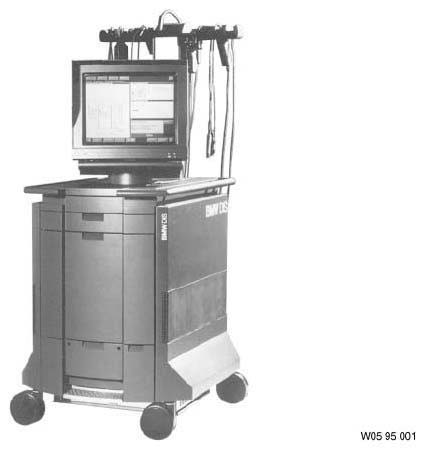

Fig. 4: Identifying Diagnosis And Information System (DIS)
Necessary preliminary tasks:
- Remove acoustic cover. Unfasten screws. Raise acoustic cover and remove
towards front.
- Remove right ignition coil cover.
- Connect DIS Tester.
Test:
- Call up Diagnosis
- Select car > right arrow key
- Function selection
- Complete vehicle
- Drive
- Engine management
- Valve gear
- Valvetronic variable valve gear
- Mechanical components/function
- Test schedule > right arrow key
- Compression test > right arrow key
- Follow DIS Tester instructions.
NOTE: Clear fault memory
REMOVING AND INSTALLING ENGINE (N62/N62TU)
Special tools required:
Necessary preliminary tasks:
- Disconnect negative battery lead.
- Both exhaust manifolds remain on engine during removal.
Observe specified tightening torque and safety precautions in all work steps.

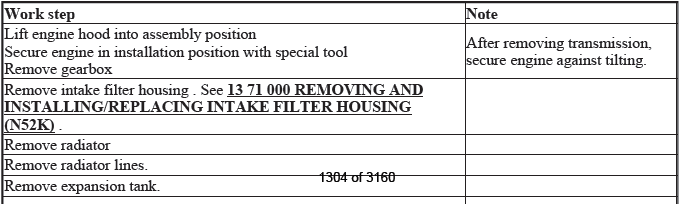

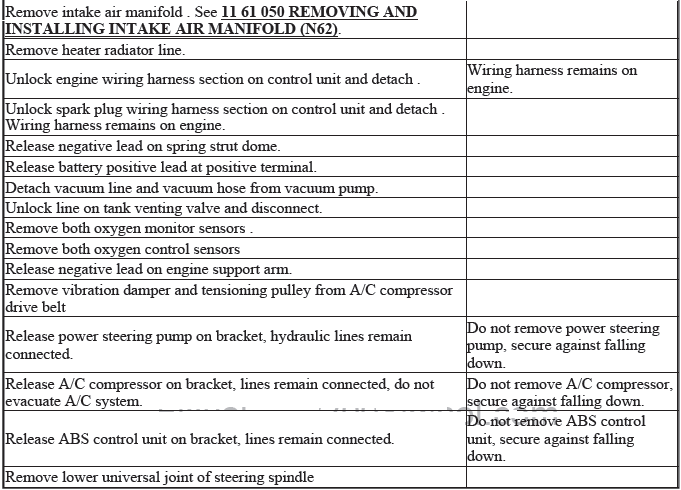

REFERENCE CHART
.png)
.png)
Vehicles with Dynamic Drive only:
Unlock and detach hydraulic line (1).
.png)
Fig. 5: Identifying Hydraulic Line
Suspend engine off-center from special tool 11 0 000.
Release engine mounts on left and right from above.
.png)
Fig. 6: Identifying Special Tool (11 0 000)
Protect assembly compartment and hydraulic lines against damage.
Installation:
Observe specified tightening torque and safety precautions in all work steps.
