BMW X5: KDS Chassis/Wheel Alignment Check With Load Up To Design Position
IMPORTANT: Carry out chassis/wheel alignment with DIN load only:
- If the technical preconditions for alignment with ride height
input are not
in place
- If, in spite of repairs having been carried out, the car's ride
height between
the left and right sides is still outside the tolerance
- If the vehicles in question have been involved in an accident
NOTE: Calibrate reversing camera after chassis/wheel alignment.
NOTE:
- Read and comply with General information and
definitions.
- Read and comply with General chassis definition.
- If necessary, prepare lifting platform.
- Drive vehicle onto lifting platform.
NOTE: The front and rear wheels must be positioned centrally on the
rotary and
sliding plates.
- Remove locking pins from both rotary and sliding plates.
.png)

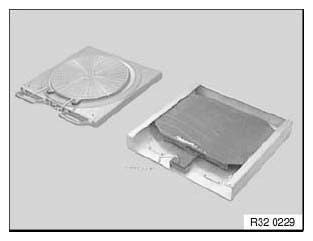

Fig. 16: Identifying Rotary And Sliding Plates
- Attach quick-clamping holder/quick-clamping unit to vehicle and remove
clamping levers in area of front
wheels
- Attach pickup to quick-clamping holder/quick-clamping unit, align using
bubble level and connect to
rotary plates
NOTE: When using quick-clamping units, perform RIM RUNOUT COMPENSATION
after installing the pickups.
.png)

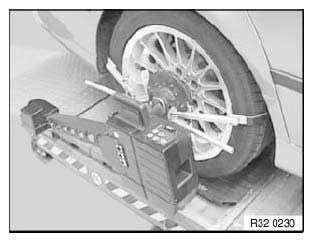

Fig. 17: Attaching Quick-Clamping Holder/Quick-Clamping Unit To Front Wheel
- If necessary, attach spoiler adapter.
.png)
Fig. 18: Identifying Spoiler Adapter
- Enter customer and vehicle data.
- Identify chassis version and select vehicle.
- Enter tire pressure and tread depth.
- Move vehicle into design position.
- Install brake tensioner.
.png)
Fig. 19: Locating Brake Tensioner
- Perform input measurement in accordance with equipment manufacturer's
instructions.
- Compare specified values with actual values.
- If necessary, adjust front axle and rear axle.
- Perform output measurement in accordance with equipment manufacturer's
instructions.
- Save and print out test record.
- Carry out steering angle sensor adjustment/adjustment for active front
steering.
- Insert locking pins into both rotary and sliding plates.
- Remove chassis/wheel alignment system.
