BMW X5: Instructions For Removing And Installing Electronic Control Units
IMPORTANT:
- Disconnecting the vehicle battery will cancel the fault memories
of control
units. Consequently, before disconnecting the car's battery, always
interrogate the fault memories. Investigate stored faults and, once any
faults have been remedied, cancel the fault memory.
- Control unit plugs should only ever be connected and disconnected
while
the ignition is turned off.
- The removal and installation of components, relays, fuses etc. can
cause
faults to be stored in fault memories capable of self diagnosis. Always
interrogate the fault memories after completing work on the electrical
system.
- Investigate stored faults and, once any faults have been remedied,
cancel
the fault memory.
Comply with the following when replacing the DME/DDE (Digital Motor
Electronics/Digital Diesel
Electronics):
- Always read out hardware/software version of the corresponding control
unit with DIS tester.
Comply with the instructions of the DIS tester on the steps coding and
programming.
On vehicles with electronic vehicle immobilization, comply with the
instructions of the DIS tester.
- Each control unit is programmed with certain basic values, which serve
as mean values. The control unit
receives different input values, depending on engine condition, which are
compared with the stored
values. The adaptive system compares the input values with the stored map
values. The control
commands are routed to the relevant actuators.
- If, for example, the DME control unit would be without current for a
long time (more than an hour), its
adaptive system would lose the stored values. When a cleared control unit is
restarted or a new control
unit is installed, the adaptive system must read in and store the input
values of the associated engine as
new basic values itself.
- This procedure could lead to erratic idling and disturbed overrunning of
the engine after starting.
Depending on the engine it could require some time before all values are
adapted to the engine condition.
- Therefore observe the following procedure before replacing or
reinstalling a DME/DDE control unit:
- If possible before exchanging control unit, run engine up to
operating temperature.
- Remove the control unit, install a new control unit and operate
vehicle at different engine speeds.
NOTES ON CHECKING IGNITION SYSTEM
Troubleshooting
- Fault in fuel injection system
- Spark plug faults
- Ignition coil faults
- Further fault patterns with evaluation
- Additional fault notes for troubleshooting
Oscillograms
- Normal oscillogram
- Oscillograms of ignition coils from different manufacturers
Check
- Secondary signal for stationary ignition distribution
REMOVING AND INSTALLING ENGINE COMPARTMENT SUPPRESSION LINES
(GROUNDING CABLES) (N62/TU)
Necessary preliminary tasks:
- Read out fault memory of DME control unit; if necessary, work through
test schedules
- Switch off ignition
- Disconnect battery negative lead
- If necessary, remove acoustic cover
- REMOVE INTAKE HOSE
- Remove intake filter housing
Release screw connection (1) of intake filter mounting.
Pull ignition coil covers (2) out of rubber grommets.
Fig. 1: Identifying Holder And Ignition Coil Covers
Release front screw connection of fuel injector wiring harness, screw down
grounding strap with crimp
connection again in upward direction.
Release ignition coil ground screw connection and screw other end of grounding
strap to ignition coil ground
again.
Installation:
Tightening torque: 12 52 3AZ.
The picture shows the right cylinder bank, the procedure for the left
cylinder bank is identical.
Add final details to vehicle, read out fault memory.

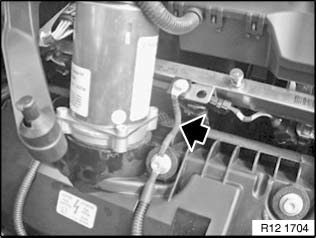

Fig. 2: Identifying Ignition Coil Ground Wire
