BMW X5: Hazard warning flashers
.png)

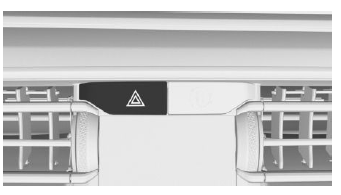

The button is located in the center console.
The red light in the button flashes when the hazard warning flashers are activated.
Warning triangle
The warning triangle is located in the left storage compartment of the cargo area.

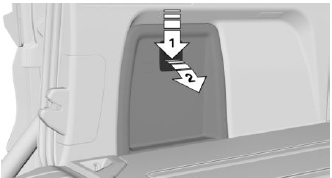

1. Unlock the cover of the left side panel, arrow 1, and fold open, arrow 2.
.png)

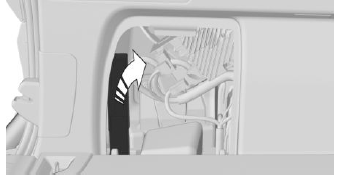

2. Take the warning triangle out in the direction of the car's interior.
.png)
First-aid kit
General information
Some of the articles have a limited service life.
Check the expiration dates of the contents regularly and replace any expired items promptly.
Storage
Storage for the first-aid kit is provided in the left storage compartment of the cargo area.

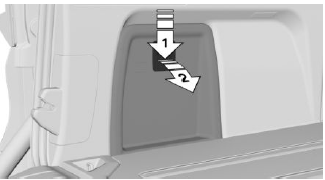

1. Unlock the cover of the left side panel, arrow 1, and fold open, arrow 2.
.png)
2. If necessary, remove the cargo cover from the storage under the cargo floor panel.
