BMW X5: Displays, control elements

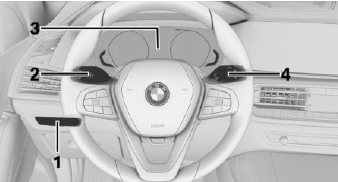

In the vicinity of the steering wheel
.png)
- Light switch element
- Turn signal indicator, high beams
- Instrument cluster
- Wipers
Indicator/warning lights
The indicator/warning lights can light up in a variety of combinations and colors.
Several of the lights are checked for proper functioning and light up temporarily when drive-ready state is turned on.

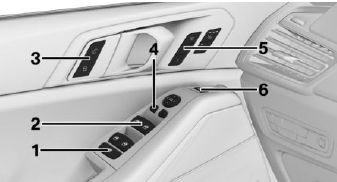

Driver's door
.png)
- Safety switch
- Power windows
- Central locking system
- Exterior mirrors
- Seats, comfort features
- Opening/closing the tailgate

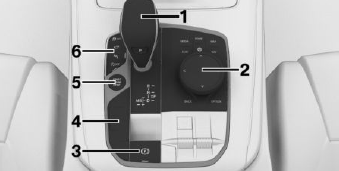

Switch console
.png)
- Selector lever
- Controller
- Parking brake, Automatic Hold
- Driving Dynamics Control
- Start/Stop button
- Assistance systems
iDrive
Principle
iDrive is the operating concept of the infotainment system and includes a large number of functions.
Buttons on the Controller
Go to the main menu.
Go to Apps menu.
Go to the Media/Radio menu.
Go to the Communication menu.
Go to navigation map.
Go to destination input menu for
navigation.
Go to the previous display.
Go to the Options menu.
Voice control
Activating the voice control system
Press the button on the steering
wheel.
Say the command.
Ending voice control
Press the button on the steering
wheel
or ›Cancel‹.
