BMW X5: Starter Lead
REMOVING AND INSTALLING OR REPLACING BATTERY POSITIVE LEAD (BETWEEN ALTERNATOR, STARTER MOTOR AND JUMP START CONNECTION POINT) (N62, N62TU)

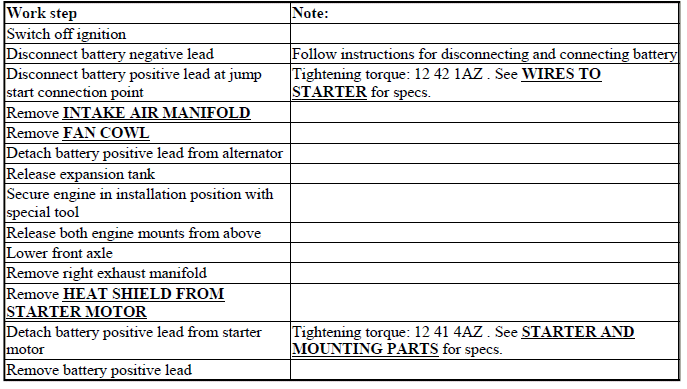

REFERENCE CHART
.png)
REMOVING AND INSTALLING OR REPLACING BATTERY POSITIVE LEAD (BETWEEN ALTERNATOR, STARTER AND BATTERY POSITIVE TERMINAL) (N62)

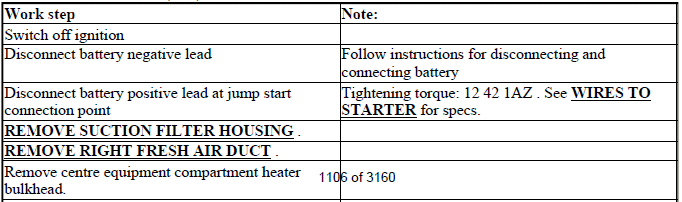

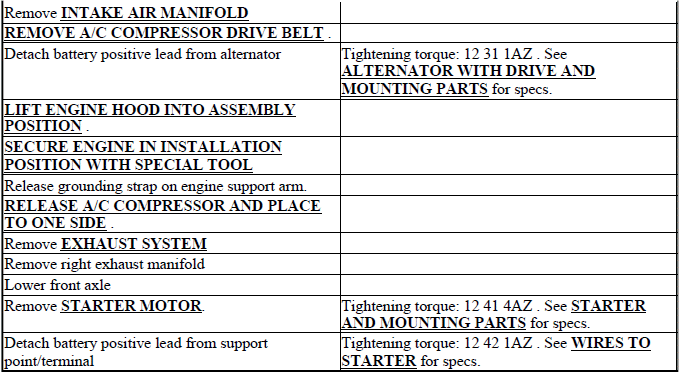

REFERENCE CHART (N62)
.png)
.png)
Unclip battery positive lead (2) from holders (1).
Installation:
Make sure battery positive lead is in correct installation position.
Danger of short circuits.
.png)

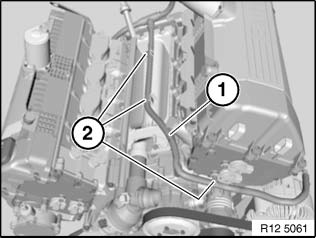

Fig. 70: Identifying Positive Battery Lead And Holders
Add final details to vehicle.
Check function of DME.
