BMW X5: Hand Pump

Note: For Lifetime oil filling

SI number: 1 01 98 (294)

Order number: 00 2 080

Hand pump

Maintenance & General Information
Fig. 36: Identifying Hand Pump (00 2 080)

EXHAUST PIPE CUTTER

Note: For V2a pipe

Series: E12, E21, E23, E24, E28, E30, E30/C, E30tou, E31, E32, E32/3, E34, E34tou, E36, E36/2, E36/3, E36/5, E36/7, E36/C, E36tou, E38, E38/3, E39, E39PL, E39tou, E46, E46/16, E46/2, E46/3, E46/5, E46/C, E52, E53, E60, E61, E63, E64, E65, E66, E67, E68, E70, E81, E83, E85, E86, E87, E90, E91, E92, E93, R50, R52, R53, R56, RR1

Storage location: A9, B9

SI number: 1 03 95 (900)

Order number: 00 2 210

Exhaust pipe cutter

Consisting of:

2 = 00 2 212 Chain

Maintenance & General Information
Fig. 37: Identifying Exhaust Pipe Cutter (00 2 210)

BLIND RIVETING TONGS

Note: Blind riveting tongs for plastic rivets

Series: E46/2, E46/5, E46/C, E53, E70

Storage location: C37

SI number: 1 12 03 (997)

Order number: 00 2 240

Blind riveting tongs

Consisting of:

1 = 00 2 241 Tool

2 = 00 2 242 Adapter

Maintenance & General Information
Fig. 38: Identifying Blind Riveting Tongs (00 2 240)

SPECIAL PLIERS FOR CABLE RECONDITIONING

Note: With the market introduction of engines (N46, N52 and S85), cable 12 7 420/421 can be used for diagnosis after conditioning

SI number: 02 03 04 (106)

Order number: 00 2 250

Special pliers for cable reconditioning

Maintenance & General Information

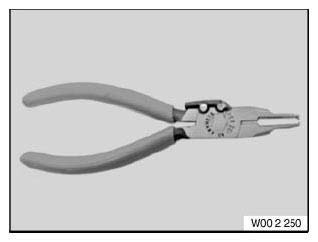

Fig. 39: Identifying Special Pliers For Cable Reconditioning (00 2 250)

LOCATING FIXTURE

Minimum set: Mechanical tools

Note: For securing vehicle on lifting platform.

Series: E70

SI number: 01 22 06 (307)

Order number: 00 2 260

Locating fixture

Maintenance & General Information

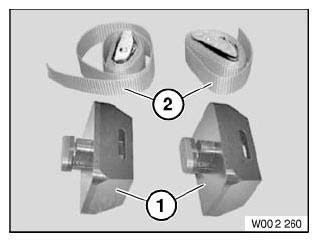

Fig. 40: Identifying Locating Fixture (00 2 260)

ADAPTER (2X)

SI number: 01 22 06 (307)

Order number: 00 2 261

Adapter (2 x)

Maintenance & General Information
Fig. 41: Identifying Locating Fixture (00 2 260)

TENSIONING STRAP (2X)

SI number: 01 22 06 (307)

Order number: 00 2 262

Tensioning strap (2 x)

Maintenance & General Information
Fig. 42: Identifying Locating Fixture (00 2 260)
